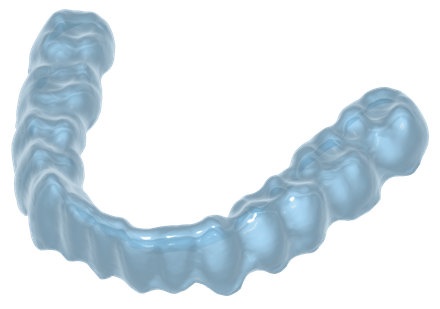

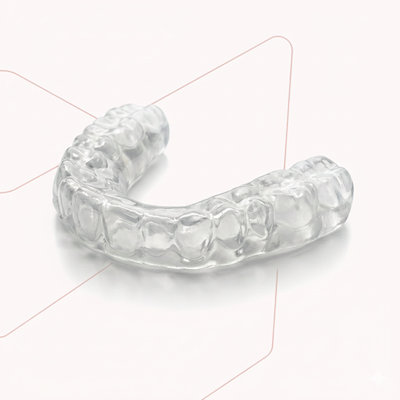

Night Guard – Digital CAD/CAM Occlusal Splint

Precisely designed occlusal splint for bruxism, clenching and occlusal stabilisation, created from your intraoral scans.

Fully digital workflow

High-precision CAD/CAM

Comfort & long-term protection

A custom digital occlusal splint designed from your STL files to protect teeth, prosthetics and orthodontic results from parafunctional forces. Voxel3Di Lab delivers a predictable, comfortable fit with stable occlusal contacts and minimal chairside adjustments.

Clinical Indications

A versatile stabilisation splint indicated wherever controlled occlusal protection is required.

Nocturnal bruxism and clenching
Protection of veneers, crowns, bridges and implant-borne restorations
Post-orthodontic stabilisation in patients with parafunction
Occlusal stabilisation during complex restorative/rehabilitation cases
TMJ-related cases where a stabilisation splint is indicated (as per clinician diagnosis)

Design & Technical Specifications

Designed fully digitally to balance protection, comfort and long-term stability.

Arch Typically maxillary full-arch (mandibular option on request)
Coverage Full coverage of all remaining teeth in the selected jaw
Occlusion Even bilateral contacts in centric; guidance scheme per your prescription
Thickness Occlusal thickness optimised for durability & comfort; thinned margins
Finish Highly polished internal & external surfaces for comfort and hygiene
Material Clear, durable splint material suitable for long-term use

Customisable occlusal scheme Digital design archive Strain-reduction for prosthetics

Digital Workflow Overview

A streamlined digital pathway from scan to fitted night guard.

Create & submit the case

Start the service via the Voxel3Di dashboard and select Night Guard – Occlusal Splint in your prescription.

Upload STL files

Upload upper and lower arches plus your bite record (centric relation or maximum intercuspation as indicated).

Define the occlusal scheme

Specify arch (maxilla/mandible), preferred guidance (e.g. flat plane, canine guidance, group function) and any areas requiring specific relief.

Digital design & CAM

Voxel3Di Lab designs the splint and fabricates it using high-precision CAD/CAM for a predictable fit and stable occlusal contacts.

Delivery & fitting

The finished night guard is dispatched to your clinic, ready for fitting, minor adjustment and patient instructions.

Design screenshots or approval steps (if required) can be arranged according to your clinic preferences.

Case Submission Requirements

Provide complete digital records to ensure optimal fit and occlusal accuracy.

1. Digital impressions

Upload STL files for:

Upper arch
Lower arch

2. Bite registration

Provide a reliable occlusal record:

Centric relation
or Maximum intercuspation

3. Prescription details

Specify:

Arch: maxilla / mandible
Desired occlusal scheme
Relief areas or special notes

4. Clinical notes

Optionally include:

TMJ symptoms
Recent restorative or orthodontic work
Parafunction severity or wear patterns

Patient Care & Maintenance (For Your Instructions)

Use the following points as a guide when instructing patients:

Wear the night guard as prescribed (typically every night during sleep).
Rinse with cold or lukewarm water after use; brush gently with a soft toothbrush and non-abrasive soap.
Avoid hot water and harsh chemicals that may deform or damage the splint.
Store dry in a ventilated container when not in use.
Attend regular follow-up visits to review fit, occlusion and material wear.

Always ensure the splint is clinically reviewed and adjusted by the supervising clinician before long-term wear.
